Complete Vehicle Mitigation & Pedestrian Security System

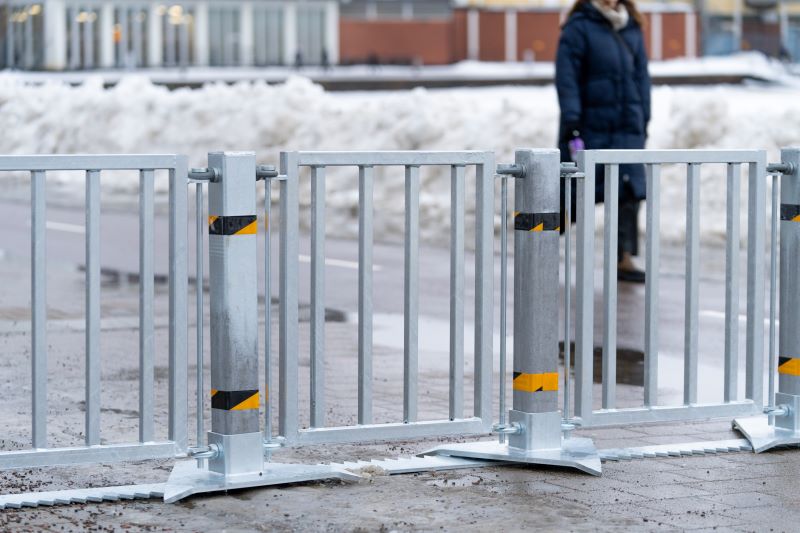

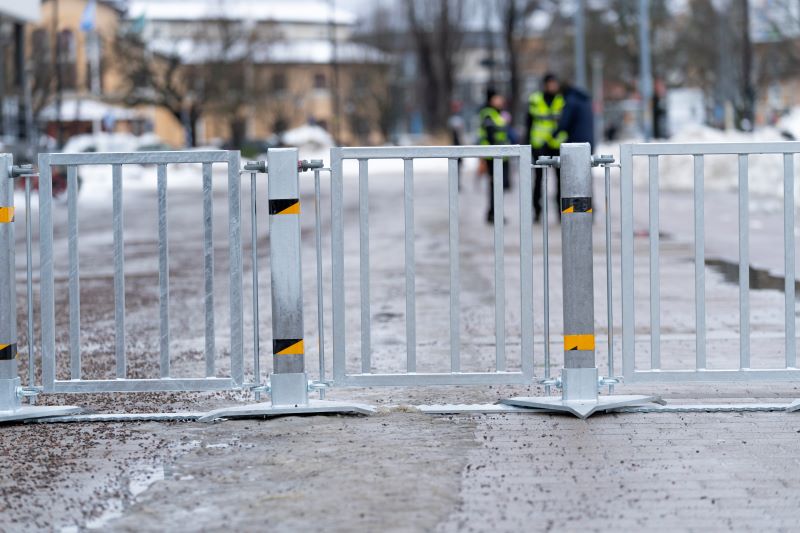

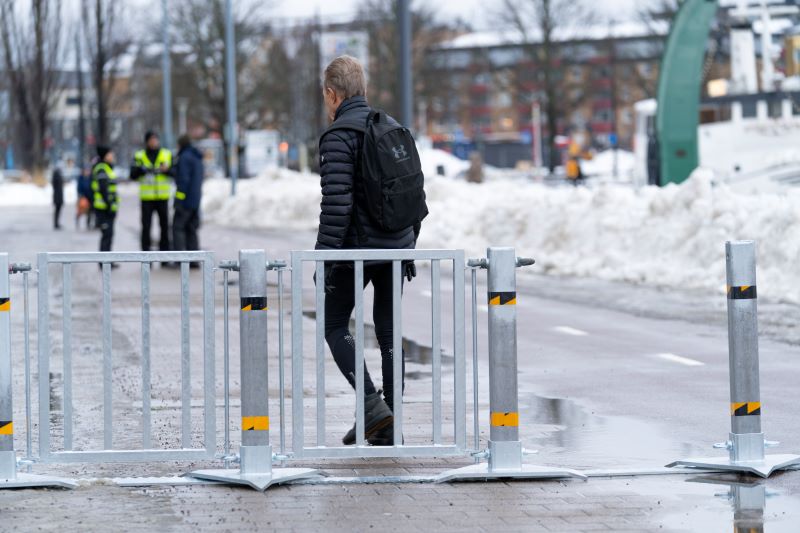

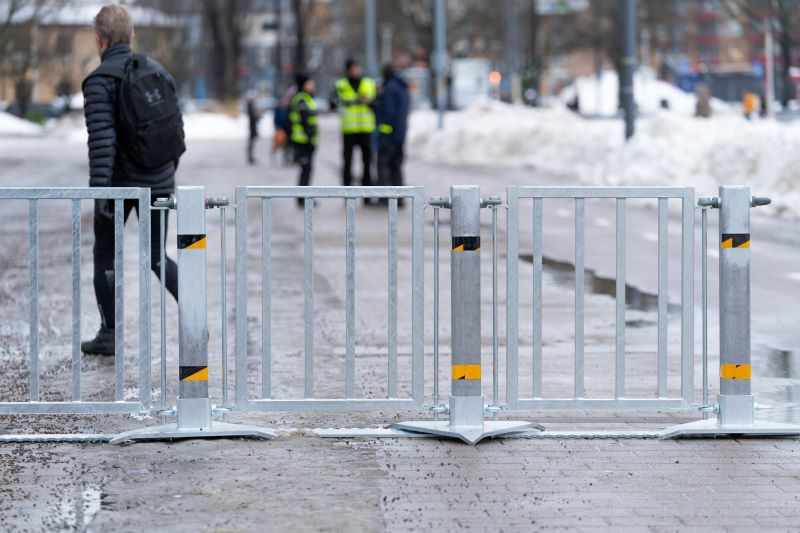

The Anti-Terror Barrier + Security Fence System combines certified hostile vehicle mitigation with integrated pedestrian access control in one complete solution.

Built around the ISO 22343 certified Road Barrier platform, this complete system provides approximately 7 metres of vehicle protection while the integrated Security Fence Panels create a continuous pedestrian barrier that helps prevent unauthorised access through the protected area.

The result is a highly effective perimeter security solution for city centres, public events, government facilities, airports, transport hubs and critical infrastructure.

Designed for rapid deployment, the entire system requires no foundations, excavation or heavy machinery and can be installed, relocated and stored with ease.

What's Included

Road Barrier System

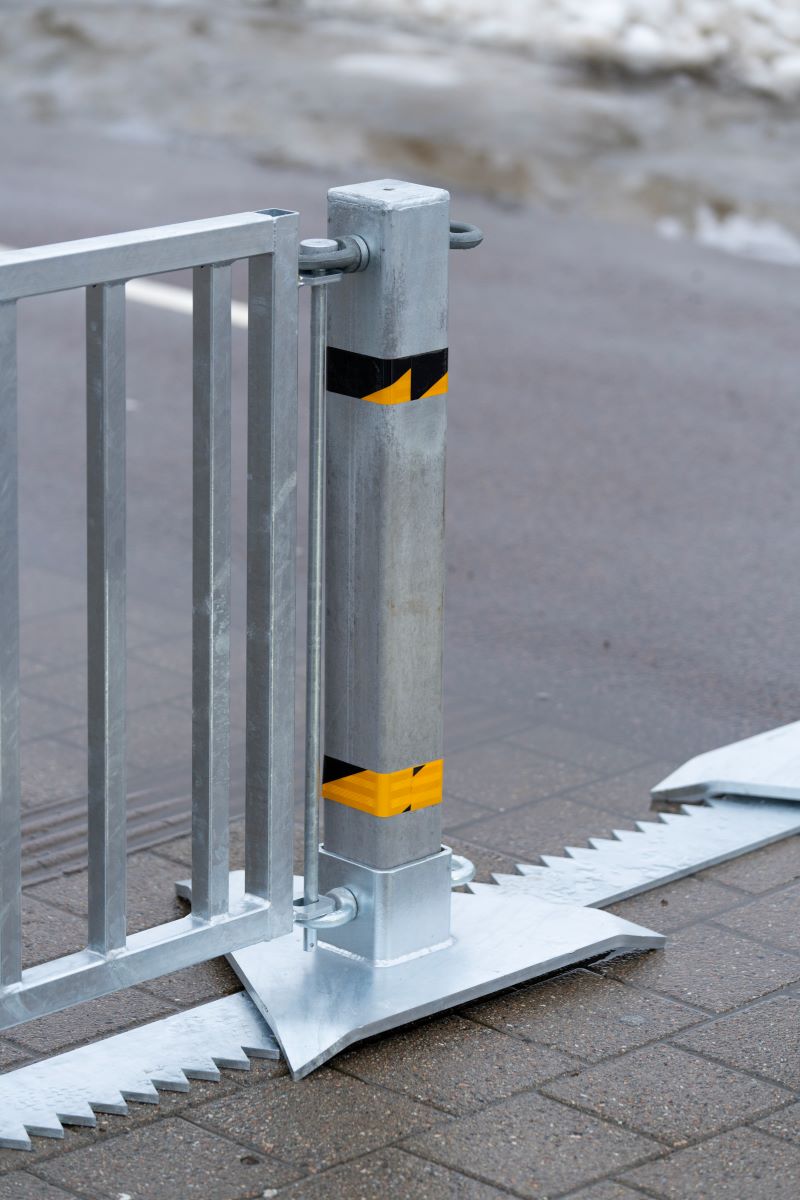

8 × Barrier Posts

• Height: 860 mm
• Width: 100 mm
• Weight: 13 kg each

8 × Base Triangles

• Height: 150 mm
• Side Length: 600 mm
• Weight: 20 kg each

8 × Locking Brackets

• Length: 276 mm
• Weight: 1 kg each

7 × Ground Plates

• Length: 940 mm
• Width: 150 mm
• Height: 150 mm
• Weight: 11 kg each

Security Fence System

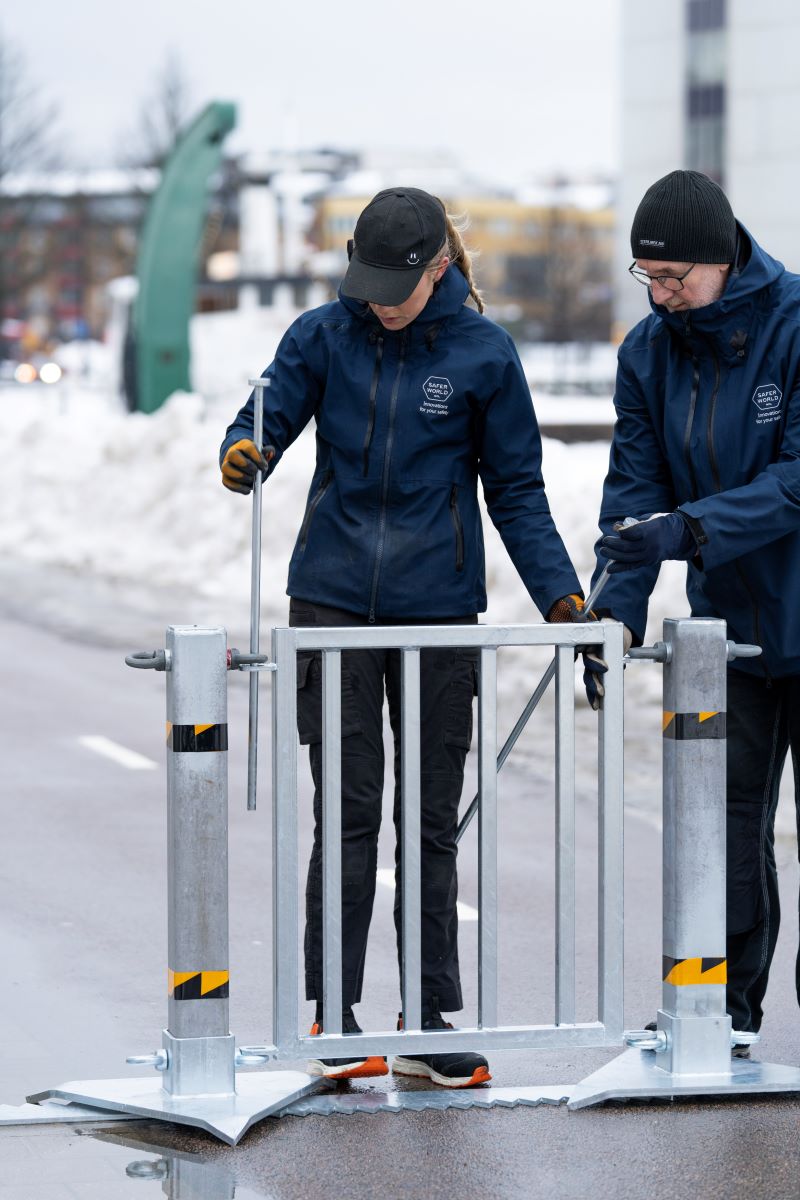

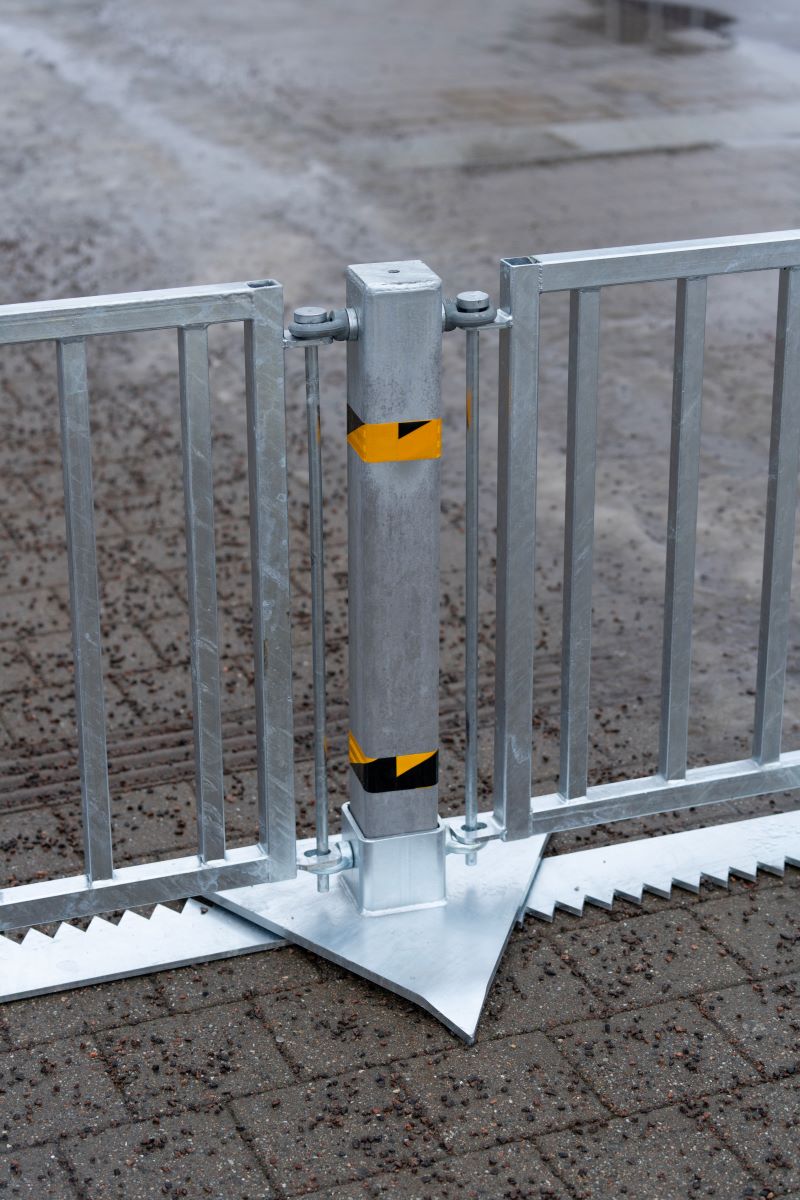

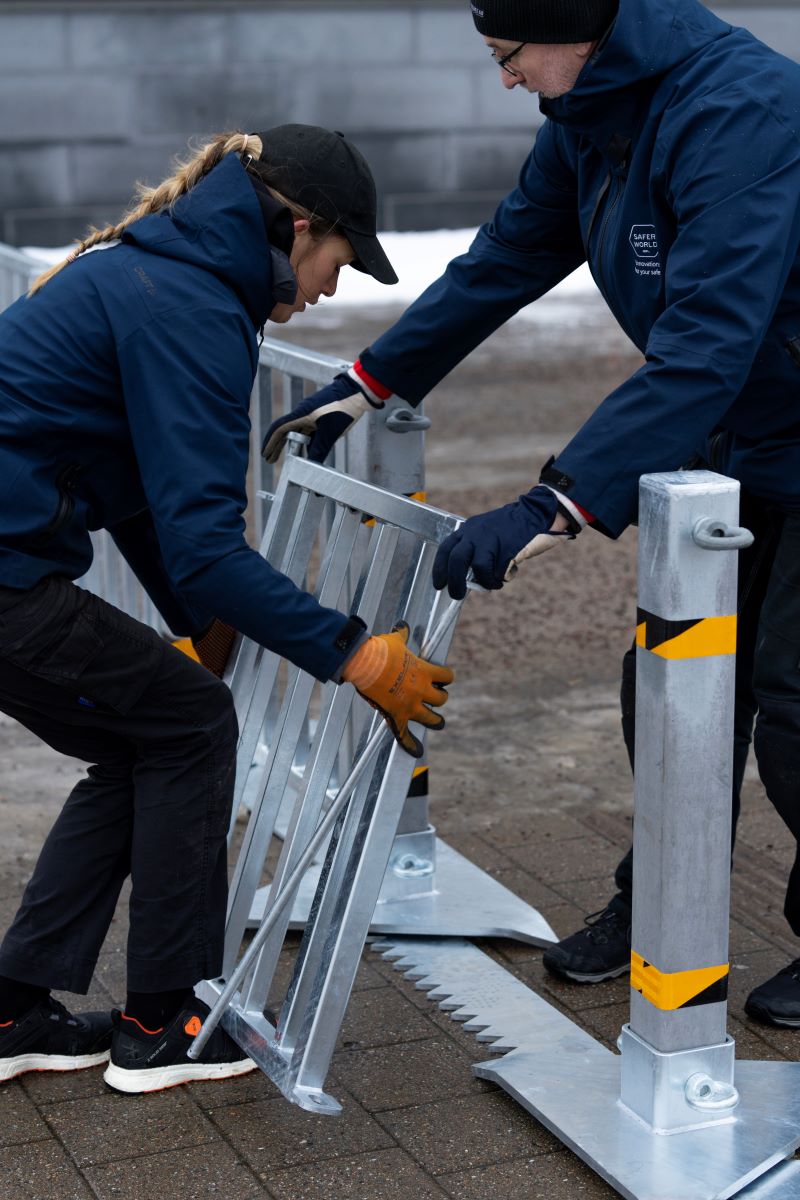

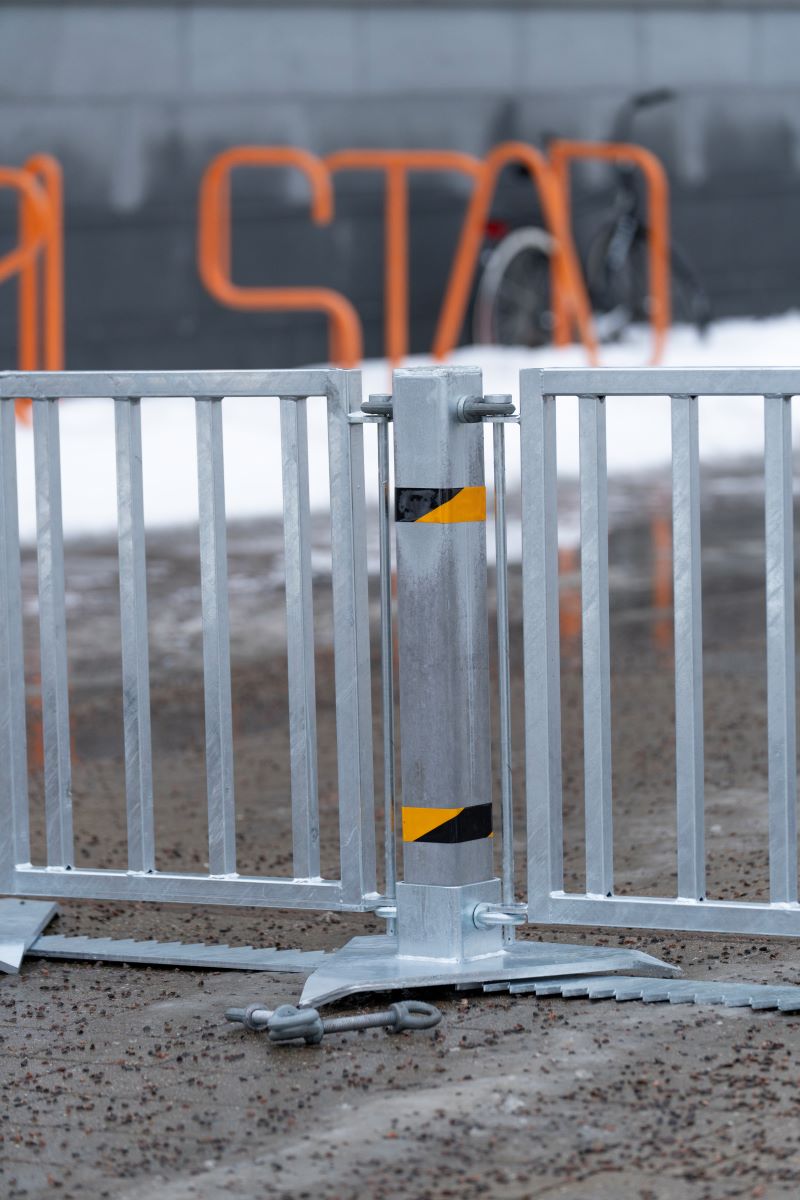

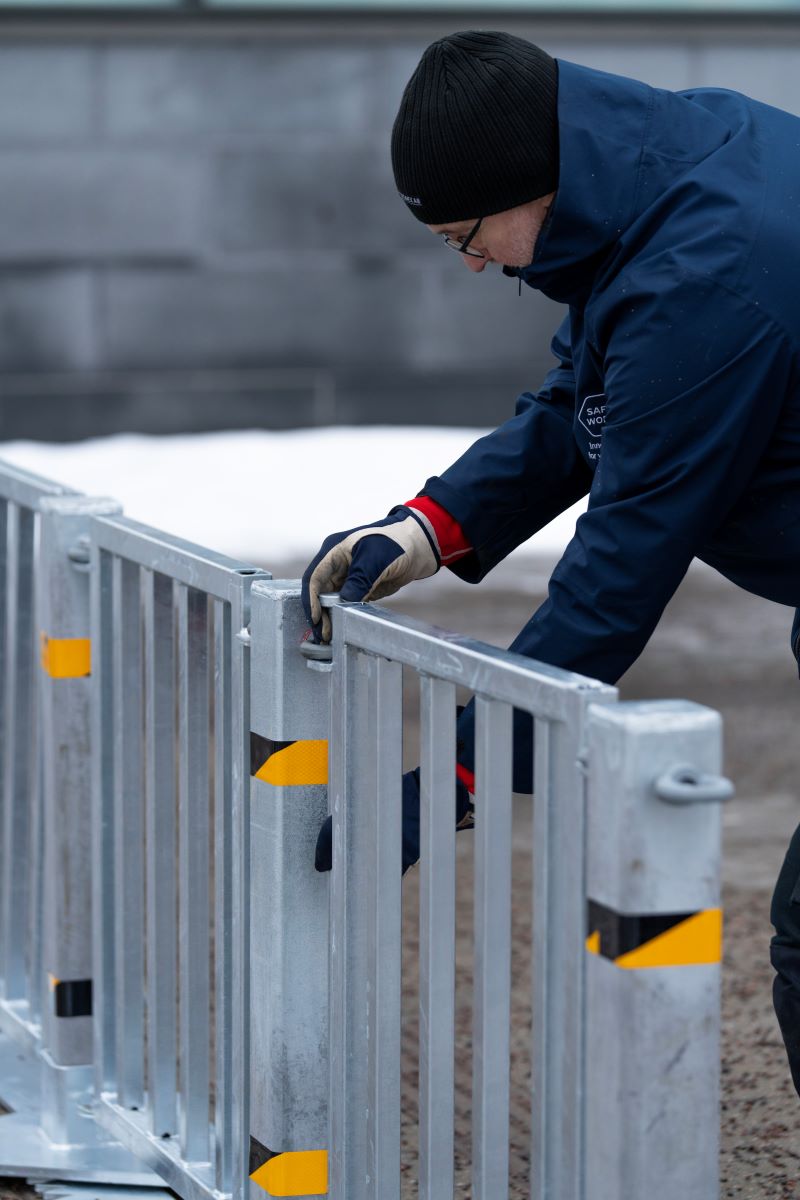

7 × Security Fence Panels

• Hot-dip galvanised steel construction
• Installed between Road Barrier units
• Creates a continuous pedestrian security barrier
• Designed exclusively for the Road Barrier System

Transport Packaging

2 × Heavy-Duty Pallet Boxes

Each supplied with:

• EU pallet (800 × 1200 mm)
• Pallet collars
• Protective lid
• Forklift compatible
• Reusable transport packaging

Key Features

• Complete hostile vehicle mitigation and pedestrian security solution
• ISO 22343 certified Road Barrier platform
• Approximately 7 metres of protected perimeter
• Integrated pedestrian security fence
• Prevents unauthorised access between barrier units
• No foundations required
• Rapid deployment and relocation
• Modular and reusable design
• Transported in reusable pallet boxes
• Suitable for temporary and permanent installations

Applications

• Public events and festivals
• City centres
• Government buildings
• Stadiums and arenas
• Airports
• Transport hubs
• Critical infrastructure
• Temporary security perimeters
• Urban vehicle mitigation projects
